The Horizon Trailers HZ7 15.2K 83" Hoist Dump Trailer delivers top-tier durability and functionality. With a GVWR of 15,200 lbs, 7k axles, and customizable lengths (12', 14', 16'), it's built to handle tough jobs. Equipped with premium features like a powder-coated finish, manual tarp kit, and a robust hydraulic system, this trailer is ready for anything. Schedule your tour today!
Select a category to view specs
Overview
Vehicle Identification & Details
7 specifications available
Category
Dump Bed Trailer
Condition
new
Make
Horizon Trailers
Model
7'x14'x3' BP Dump
Stock Number
TR016903
VIN
3H7BD1424TR016903
Year
2026
Dimensions & Weight
Size & Weight Ratings
7 specifications available
Cargo Area Length Ft
14
GVWR
15,200 lbs
Length
14 ft
Width
7 ft
Cargo Area Flooring Type
7GA STEEL
Cargo Area Rear Door Style
Split/Spreader Gate
Payload
9,810 lbs
Construction & Frame
Build Quality & Materials
4 specifications available
Frame Material
STEEL
Trailer Type
Dump Bed Trailer
Exterior Finish
Steel blasted and powder-coated
Primary Color
GREEN
Axles & Hitch
Axles, Hitch & Towing
6 specifications available

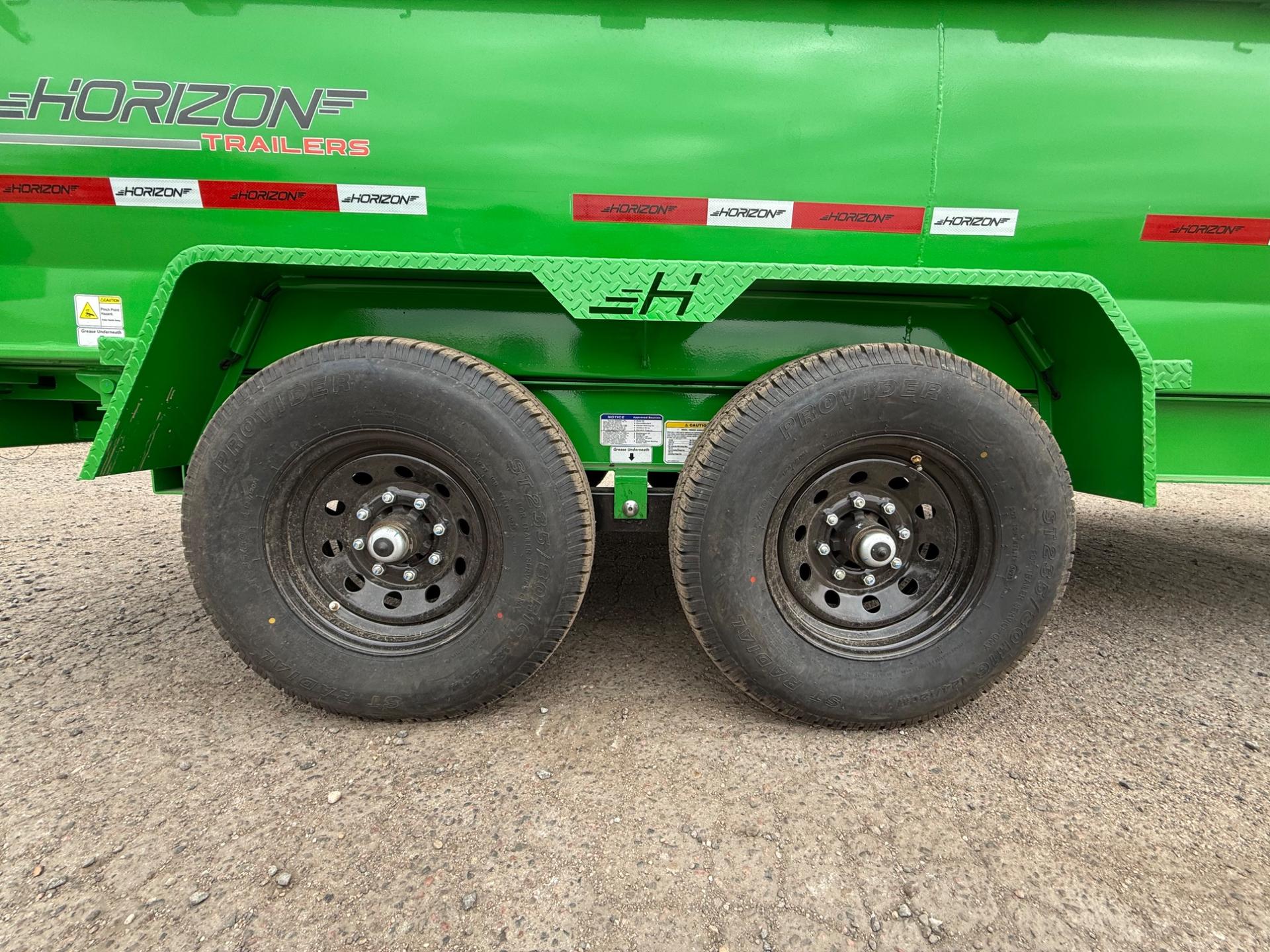

Axles
2
Axle Description
Spring
Coupler Size
2 5/16" Ball Coupler
Gawr Lbs
7,000 lbs
Towing Capacity
9,810 lbs
Towing Capacity (lbs)
9,810
Standard Features & Equipment
SIDE HEIGHT: 2’, 3’, 4’
BED WIDTH: 83"

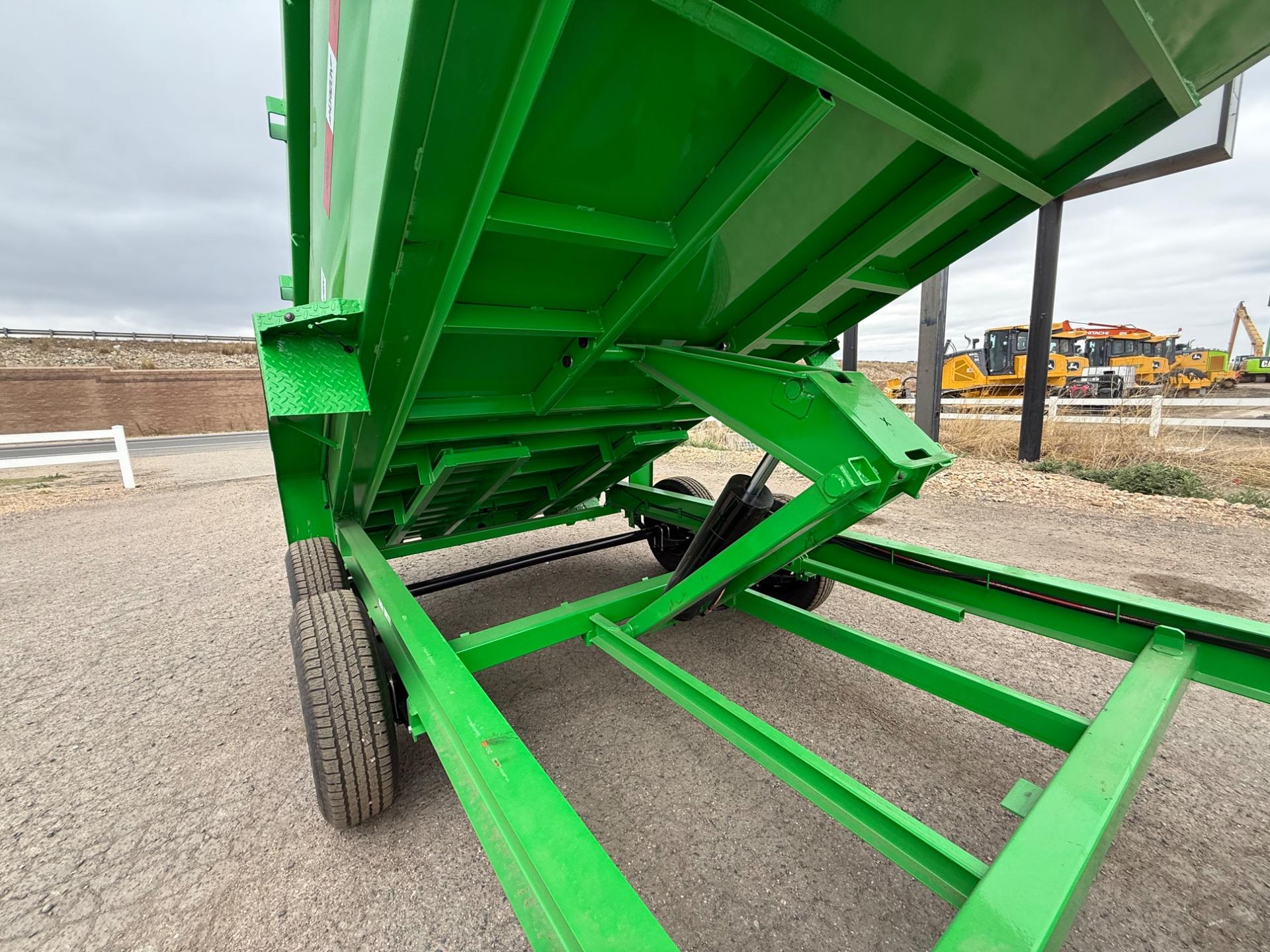

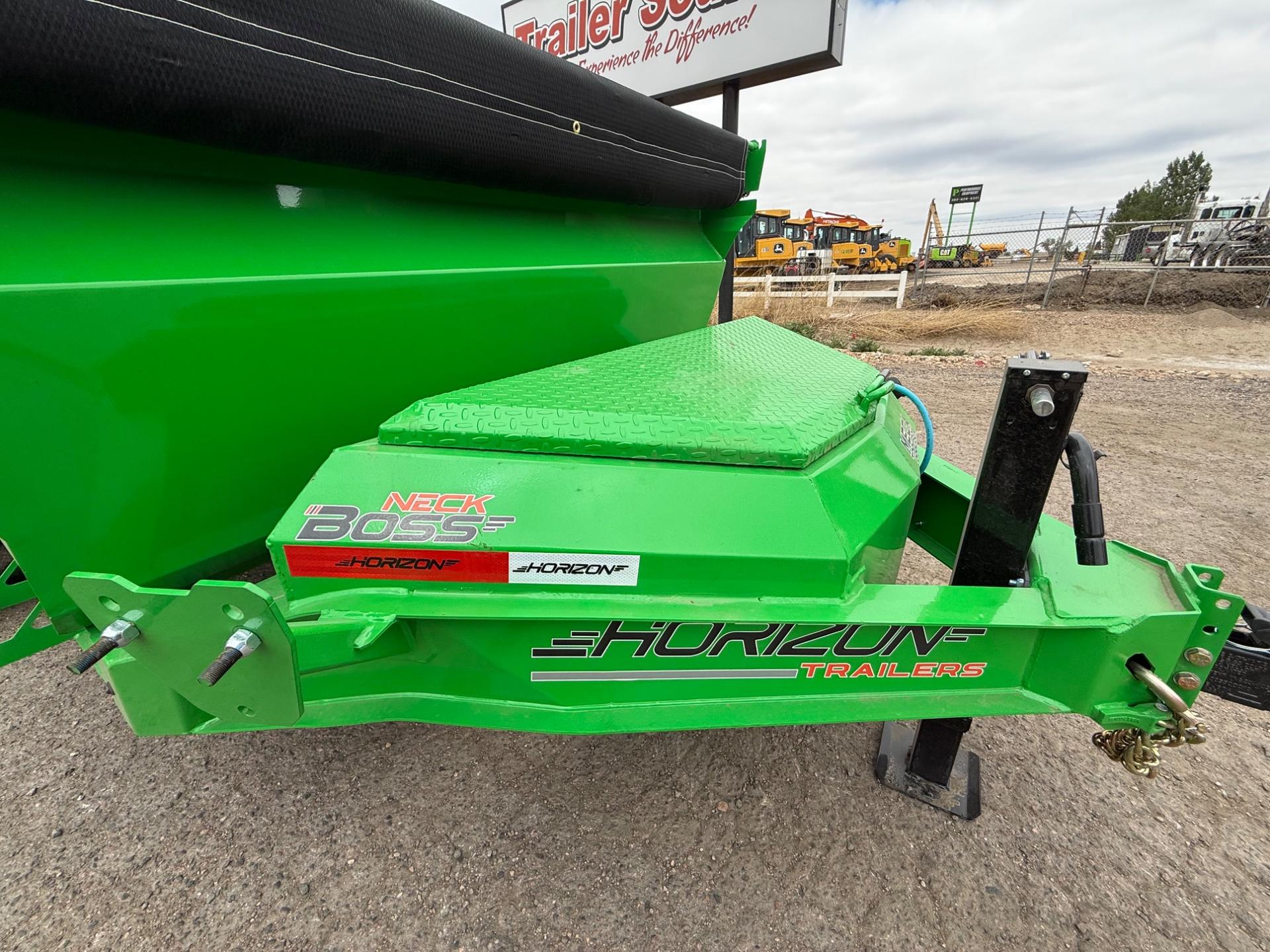

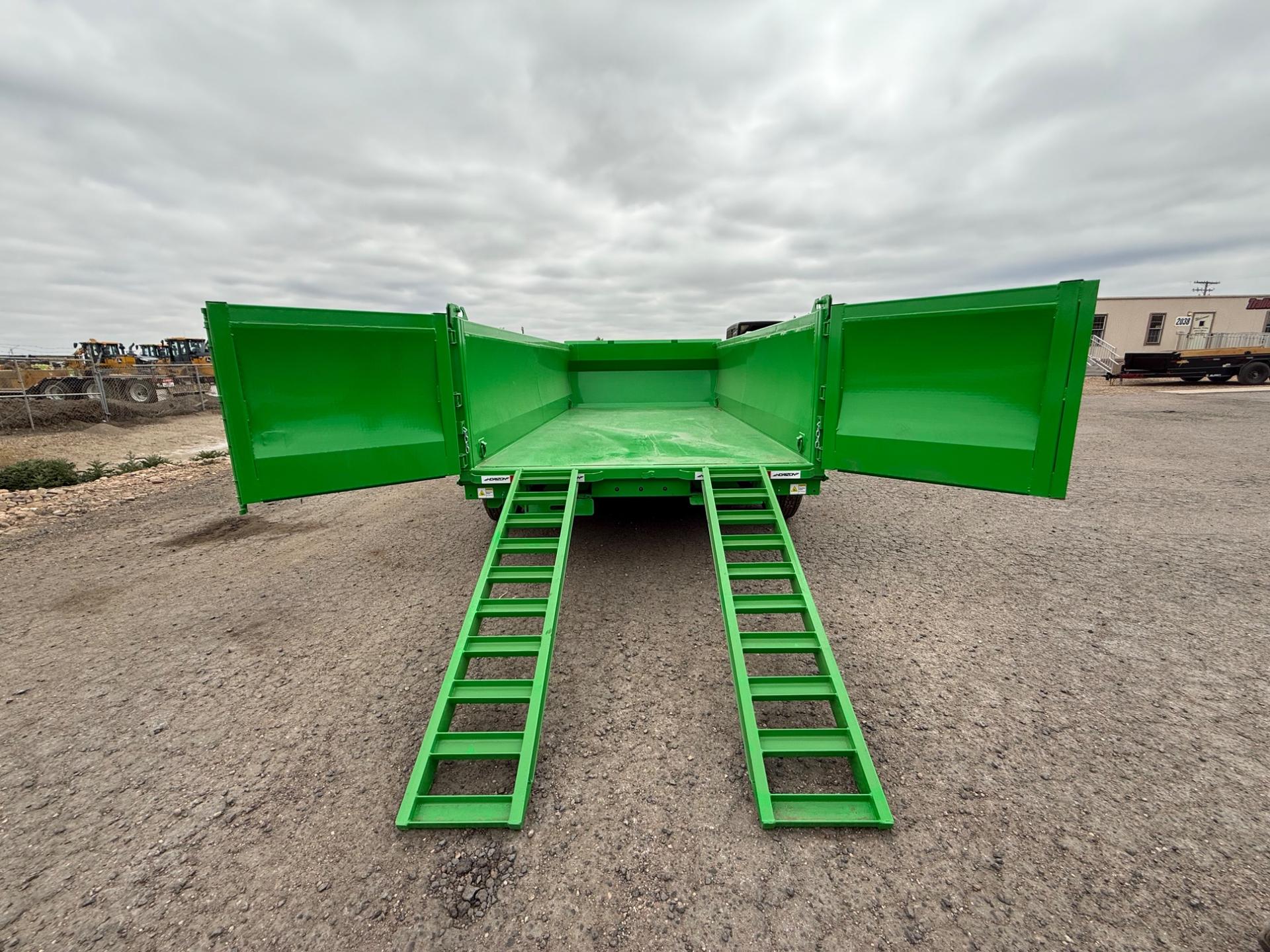

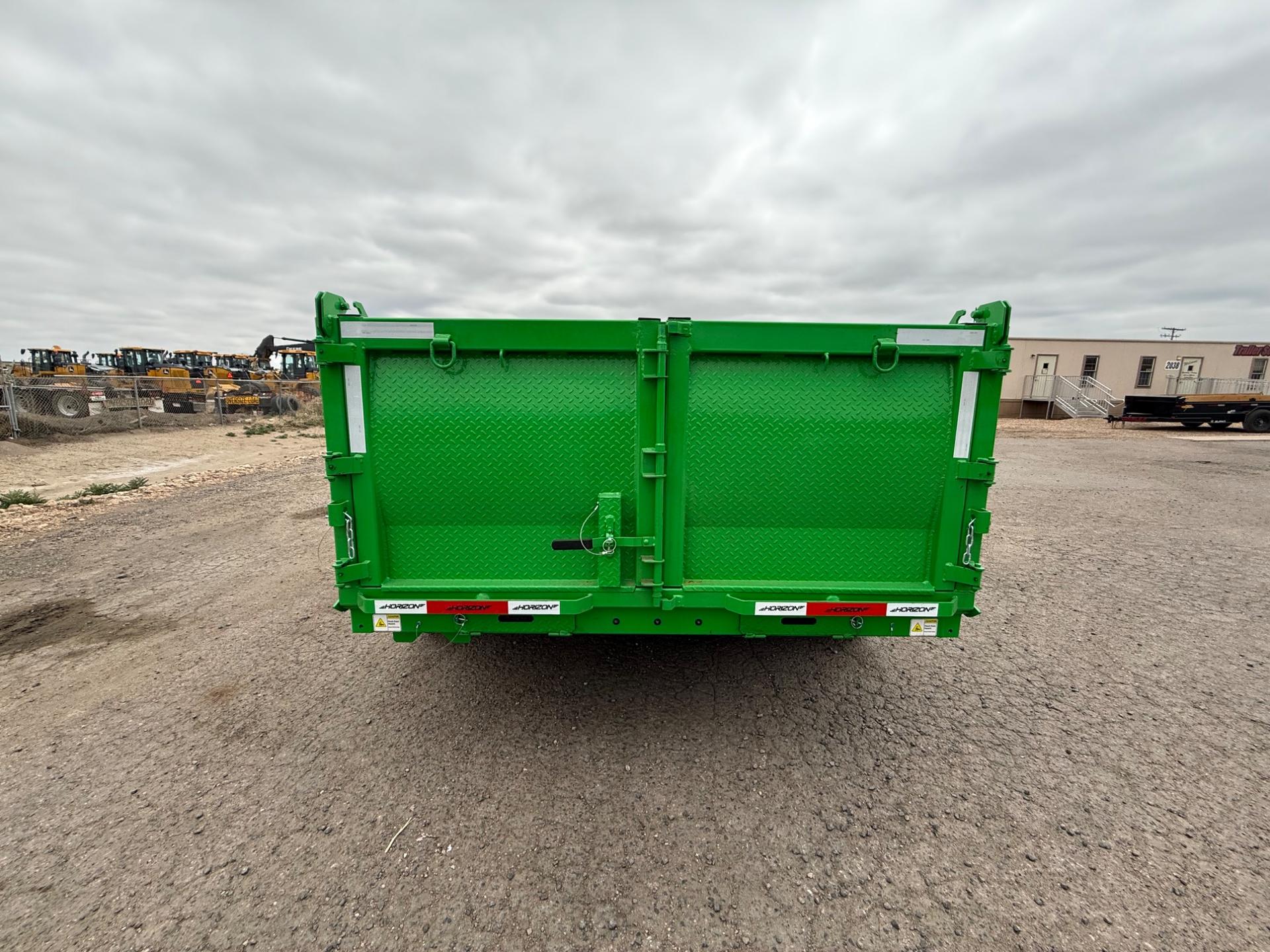

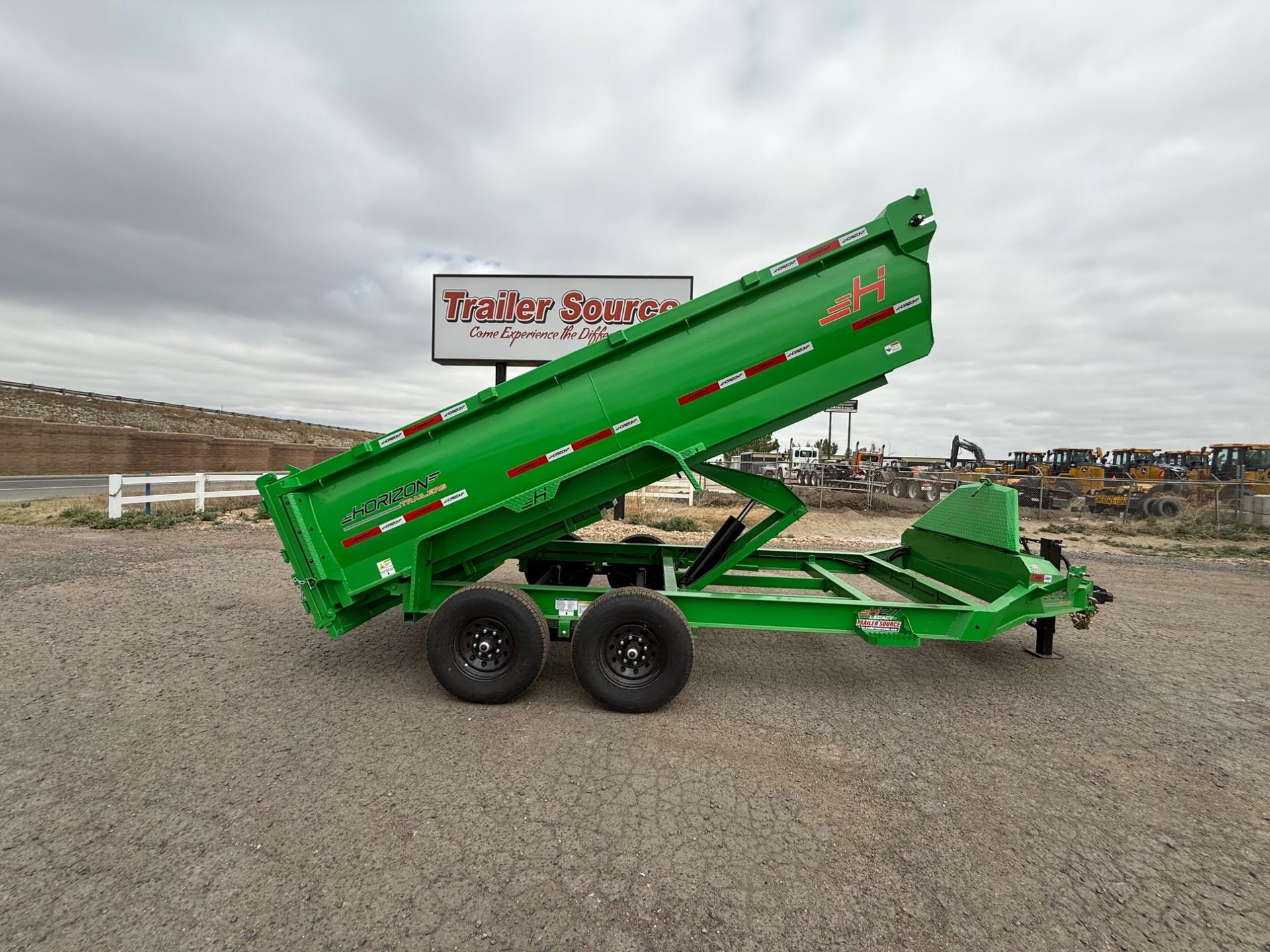

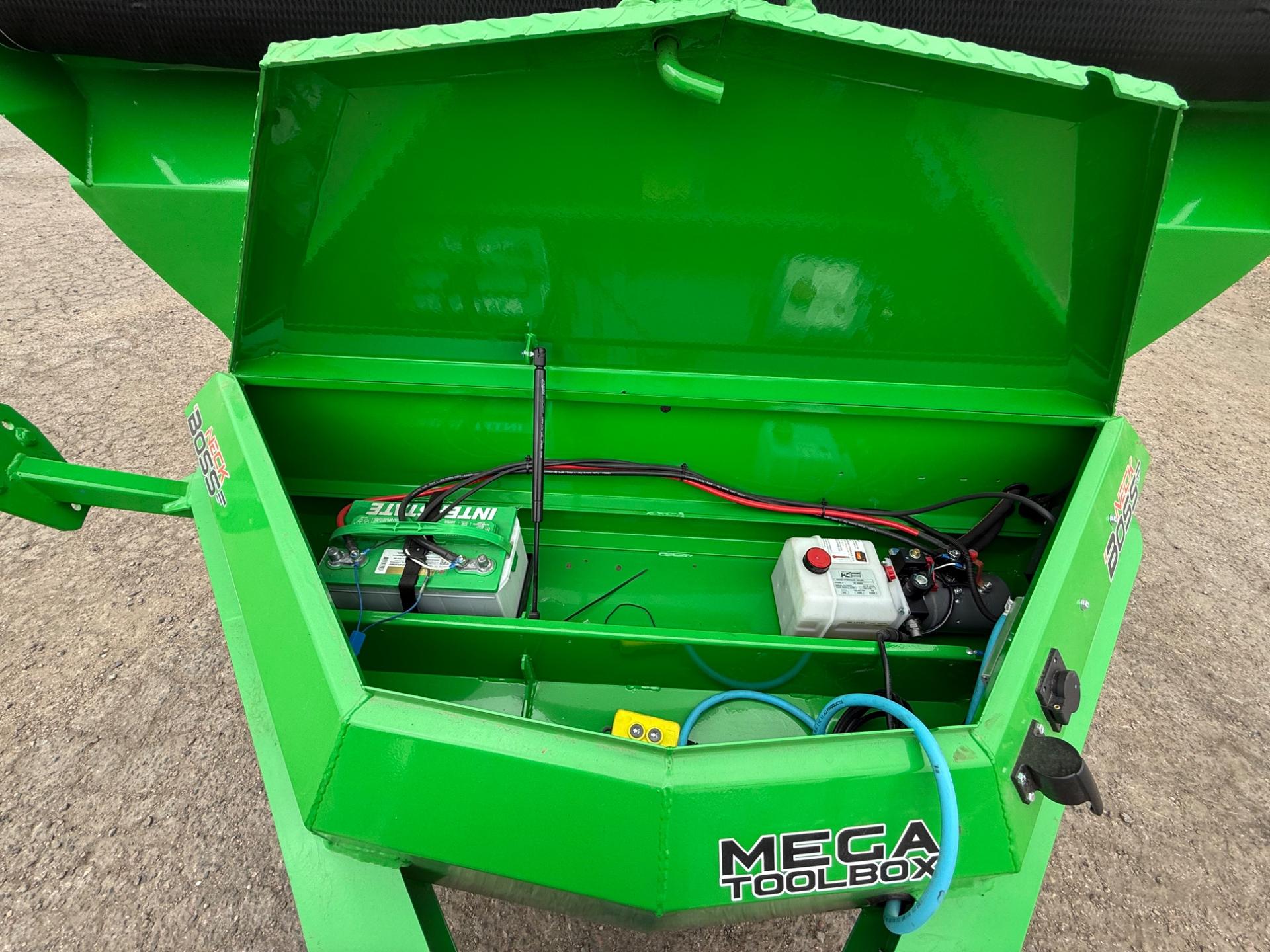

SIDE HEIGHT: 2’, 3’, 4’, BED WIDTH: 83", BED HEIGHT: 28", PAINT TYPE: Powdercoat, PREP: Steel Grit Blasted, AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty, TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty, TONGUE TYPE: 8" I-Beam (13 lbs/ft), TONGUE LENGTH: 60", SPARE: Weld On Spare Tire Mount, STANDARD COUPLER BP: Adjustable Demco EZ Latch 2-5/16" BP Coupler (21,000 lbs), FRONT JACK BP: 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs), TOOLBOX BP: Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage), BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit, SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each), MAIN FRAME: 8" I-Beam (13 lbs/ft), STEPS: Side Step On Both Sides, FLOORING: 7ga. Steel Bed, FRAME: 5" x 5" x 5/16" Angle Iron (10.3 lbs/ft), CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing, D-RINGS: 4 D Rings Welded Inside Box, DUMP ANGLE: 39° - 49°, GATE: 3 Way Door - Spreader Gate, RAMPS: Ramp Pockets w/2 - 6' 4" Long Heavy-Duty Slide In 4" Channel Ramps (5,000 lbs each), REAR STANDS: Pair Of Rear Stabilizer Stands, SIDE THICKNESS: 10ga., SIDE TYPE: Rounded Steel, TOP RAIL: 3" x 5" x 11ga. Tubing, STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets, HOOKS: 3/8" Round "J" Hooks, FENDERS: 12ga. Removable Diamond Plate Steel Fenders, TARP: Manual Tarp Kit, SYSTEM: 3 Button Hydraulic - Power Up/Power & Gravity Down, PUMP: KTI 12V Hydraulic Pump, CONTROLLER: 14' Control Cable, CYLINDER: 6" x 21" Single Push Cylinder, HOIST CAPACITY: 20,000 lbs, Radial Tires, TIRE SIZE: ST235/80R16, TIRE PLY: 10, TIRE RATING: 3,520 lbs, RIMS: 16" Black Mod Wheels, AXLE TYPE: 2 - 7k Lippert Electric Brake EZ Lube Spring Axles, BOLT PATTERN: 8 On 6.5", AXLE COUNT: 2, SUSPENSION TYPE: Spring, AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty, BATTERY: 1 - Interstate 27 Deep Cycle Battery, CHARGING SYSTEM: 110V Integrated Trickle Charger, WIRING HARNESS: All-Weather Wiring Harness (7-Way RV), FRAME WIRING: Double Insulated Wiring Harness, LIGHTS: DOT Approved Tecniq LED Lights, REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape,
* Vehicle specifications listed to the best of our knowledge. All specifications, features, and information are provided by the manufacturer. Trailer Source Inc is not responsible for manufacturer defects, specification changes, or recalls. Buyers should verify all information directly with Trailer Source Inc.
